When you’re sourcing fabricated metal for a pharmaceutical lab, biotech suite, or any controlled environment, one spec decision shows up on nearly every drawing: 304 or 316L stainless steel. Pick wrong and you either overspend on material you didn’t need, or you install components that corrode in an environment they were never rated for. Here’s how to make the call with confidence.

Both grades are austenitic stainless steels, and both are workhorses in clean room construction. They look nearly identical once they’re TIG welded, ground smooth, and finished to a #4 brush standard. The difference is in the chemistry — and in how that chemistry behaves when it meets the cleaning agents and process conditions of a controlled environment.

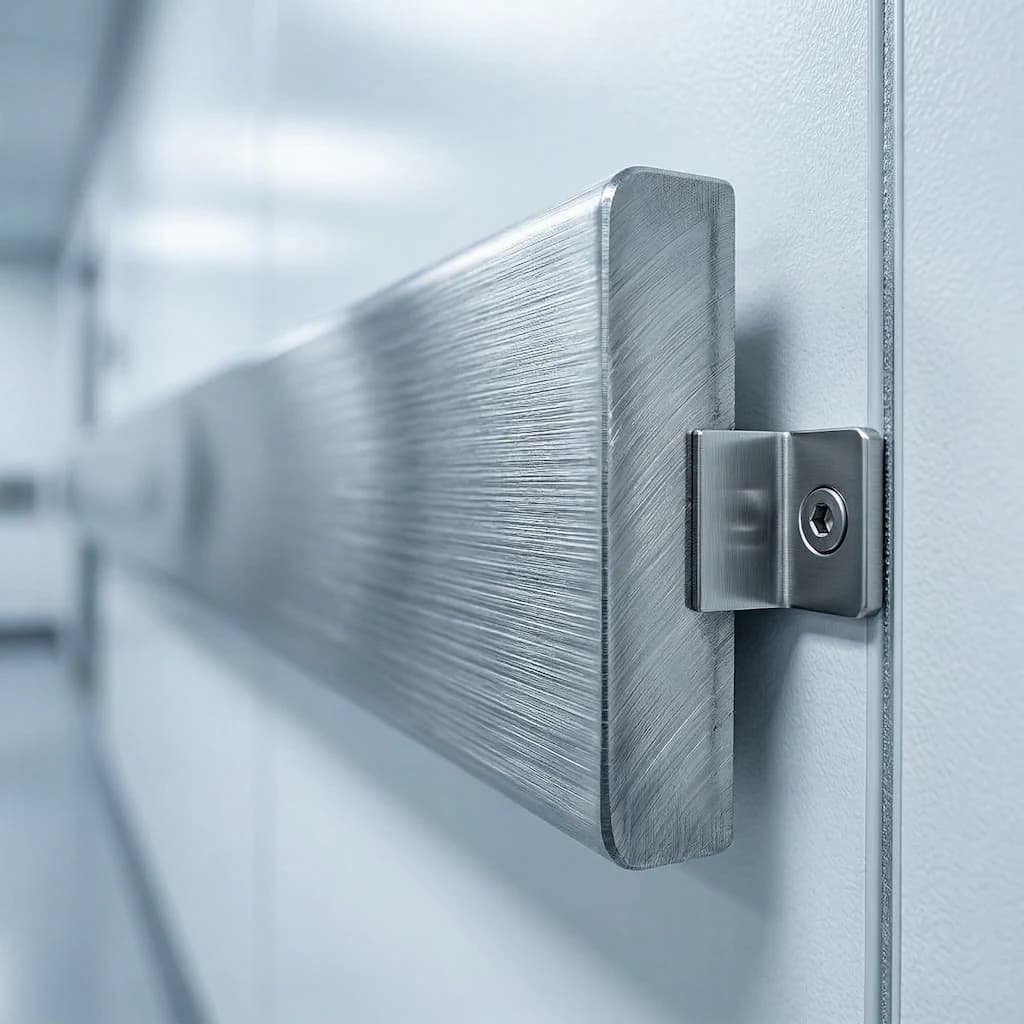

304 stainless is the most widely specified grade in the world. It resists corrosion well in standard interior conditions, takes a clean weld, and finishes beautifully. For door frames, partition framing, crash rail, corner guards, and general wall protection in spaces that aren’t exposed to aggressive chemistry, 304 is often exactly the right choice — and it keeps material costs sensible across a large component package.

316L is where things change. The 316 family adds molybdenum, which dramatically improves resistance to chlorides and the harsh cleaning and sterilization agents common in pharmaceutical and biotech spaces. The “L” means low carbon, which reduces carbide precipitation during welding — a real advantage for hygienic, crevice-free welds that need to hold up to repeated wash-down and stay free of the microscopic pitting where contamination can hide.

So when does the extra cost of 316L earn its place on the drawing? Reach for 316L when components face frequent or aggressive cleaning, exposure to chlorides or sterilants, high-humidity or wash-down zones, or any surface in direct contact with a regulated process. Lab benches, gowning station surfaces, pass-throughs, and utility chases in high-corrosion areas are classic 316L applications. For these, the molybdenum content is cheap insurance against a corrosion failure that could compromise a controlled environment.

There’s also a middle path worth knowing about: you don’t have to spec a single grade across an entire package. On most projects, the smart move is to mix grades by location — 304 for structural and protective components in benign zones, 316L for anything in a wash-down or process-contact area. That keeps the budget disciplined without compromising the surfaces that matter most.

A few finishing notes that affect grade selection. Whatever grade you choose, the weld quality and surface finish do as much work as the base metal in a controlled environment. A fully-fused, ground-smooth TIG weld with no crevices is what keeps a surface cleanable; a rough or porous weld will trap contamination regardless of whether it’s 304 or 316L. The same goes for finish — a consistent #4 brush finish gives you a uniform, cleanable surface. Grade is the starting point, not the whole story.

If you’re unsure which way to go on a given component, our default recommendation for aggressive cleaning environments is 316L. We’d rather advise you toward the grade that won’t come back to haunt the project than save a few dollars on material that wasn’t rated for the conditions. And because everything we fabricate is custom-built to your drawings in our Bradenton facility — not pulled from a catalogue — we can run different grades within the same order without slowing your timeline.

Send us your drawings, a spec sheet, or even a description of the environment, and we’ll confirm the right grade for each component before anything gets cut or welded. Call (941) 755-3111 or request a contractor quote — we get back to you the same business day.
